Aegis™ Boat Lift from EZ Dock
SKU# BL7000
Kategori: Boat Lifts
The Aegis™ Boat Lift promotes fast and convenient access to your boat and keeps it looking like new.
- Flotation capacity of up to 7,000 lbs. (3175kg) in weight and 28 feet (8.53m) in length.
- Fully adjustable polyethylene bunks configure to your boat, with the ability to customize as needed.
- Fits a variety of hull configurations including V-Hull, stepped hull, pontoon, tritoon, wake boats, and catamarans.
Durable & Easy-To-Use Aegis™ Boat Lift
The Aegis boat lift tank system is precision-molded, Linear Low-Density Polyethylene (LLDPE), resistant to the worst of weather conditions, and low water damage. The lift keeps the boat out of the water and free from marine growth on outdrives and the hull of your boat. The frame is constructed from hot-dipped galvanized steel and corrosion-resistant hardware. The lift also allows you to have easy access to your watercraft to eliminate difficult maintenance challenges. The lift is compatible with EZ Dock products and traditional dock systems.
Through the use of our air assist pumps, the Aegis Boat Lift is capable of hoisting boats up to 7,000 lbs. in weight and 28 feet in length. The Aegis Boat Lift features fully adjustable standard bunk locations for V-hull boats, with the ability to customize as needed for a variety of hull configurations. The lift also features premium low friction and high strength ultra-high molecular weight (UHMW) polyethylene bearing surfaces.
Customize Your Aegis™ Boat Lift
STEP 1 Choose a frame option that fits your needs
STEP 2 Choose the slip that the frame will fit into
STEP 3 Choose your boats hull shape
STEP 4 Choose your control unit
STEP 5 Add flotation tanks

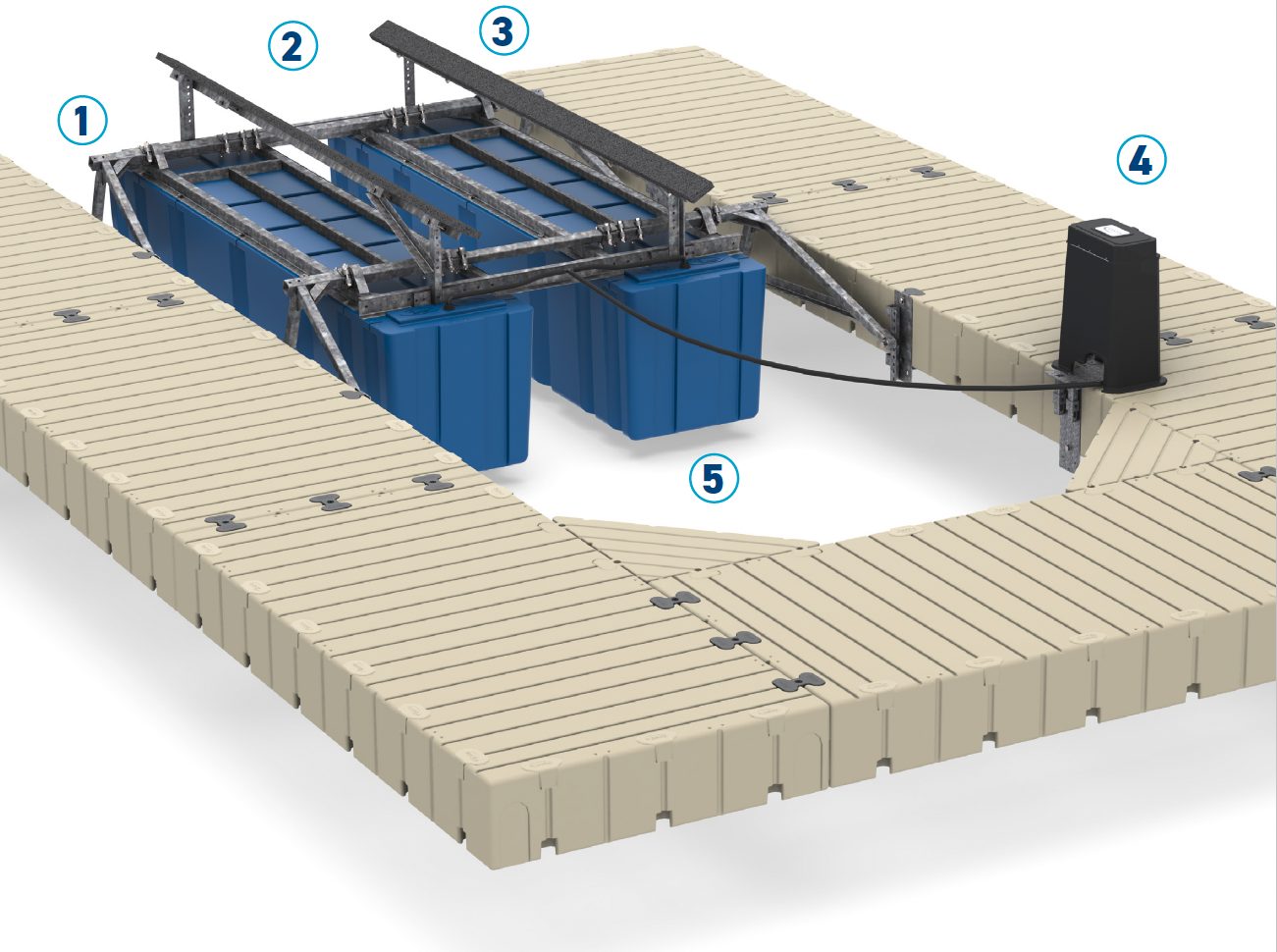

The image above shows the complete Aegis Boat Lift setup. STEP 1 4’ / 1.2m Pitman Arms Down, STEP 2 10’ / 3m Slip Width, STEP 3 V Hull Bunk Kit with 12’ / 3.6m Pads, STEP 4 Standard 110v Pump, and STEP 5 Flotation Tanks.
FRAME OPTIONS
Pitman Arms are the shafts that translates rotary or angular movement into linear movement, or vice versa. Pitmans up vs. pitmans down has everything to do with the beam, overall width, of the particular watercraft you are lifting and where the beam is located on that watercraft.

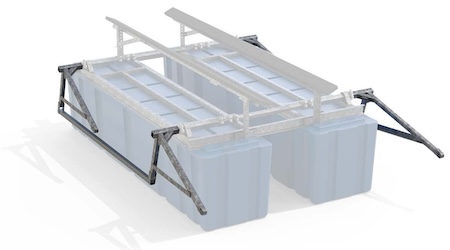

Pitman Arms Down
- For use with Pontoon and Tritoon Boats with a beam of 8’ 6” / 2.64m or more.
- Recommended for Deck Boats.
- Only width restriction is the distance between the dock brackets which are attached to the dock.

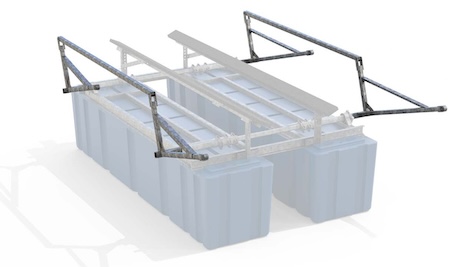

Pitman Arms Up
- Fit most, V-Hull boats, with a beam of 8’ 6” / 2.64m or less.
- Arms act as a step to access the boat.
- Keeps steel out of water.
